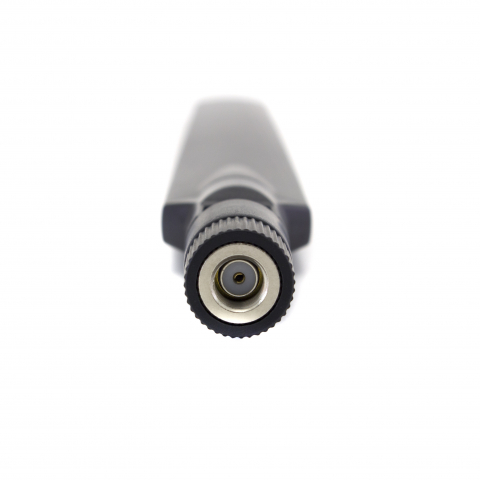

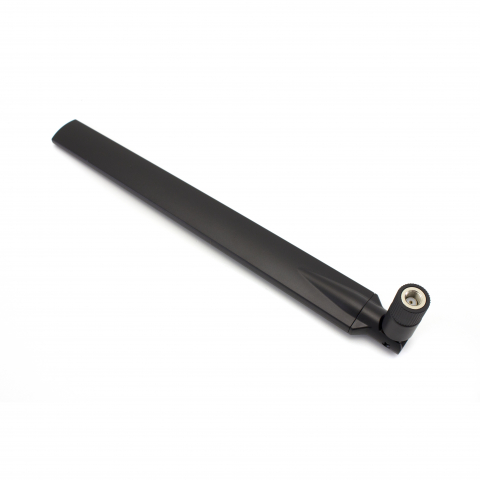

Alfa 2.4/5GHz Zimmerantenne 5/7dBi RP-SMA Male
auf Lager
?
12.35 €
12.35 €
Detallierte Beschreibung
Dies ist eine 7 dBi Rundstrahlantenne. Es kann sowohl im 2,4-GHz- als auch im 5-GHz-WLAN-Band empfangen und senden. Dies kann mit jedem Marken-WLAN-Adapter oder WLAN-Router verwendet werden, der RP-SMA-Antennenanschlüsse verwendet. Es kann mit Dualband- oder Singleband-Routern und -Adaptern verwendet werden. Es ist mit allen Wi-Fi-Standards kompatibel, einschließlich 802.11a, b, g, n und dem neuesten Standard 802.11ac.
VSWR
Kompatible Produkte
Spezifikationen
Antenne
Antennen Design
Omni
Wireless Antenna Frequenzbereich und Verstärkung
2.4 - 2.483 (GHz) 5 (dBi), 5.1 - 5.9 (GHz) 7 (dBi)
Strahlbreite
360 ° Vertikal
VSWR
< 2.5
Impedanz
50 Ω
Anschlüsse
RF Steckverbinder
(1) RP-SMA Male
Physical Parameters
Maße
Ø18.5 x 231 mm
Betriebstemperatur
-10 °C bis 55 °C
