Alfa-Antennen-Erweiterung ARS-AS087, 3m
auf Lager
?
22.15 €
22.15 €
Der Bestand ist nicht ausreichend. Bitte registrieren Sie sich, um einen Auftrag zu erteilen.
Detallierte Beschreibung
Typ-N-Antennenanschluss mit Magnetfuß
Ausgestattet mit einem Hochleistungsmagneten, um eine formschlüssige Befestigung zu gewährleisten, ist der ARS-AS087 ideal für viele Innen- und Außenanwendungen, bei denen eine Tragbarkeit der Antenne erforderlich ist. Diese Halterung enthält ein 3 m langes, hochwertiges und verlustarmes LMR®-200-HF-Kabel mit RP-SMA-Antennenanschluss (männlich) am Ende, geeignet für Wi-Fi-Geräte.

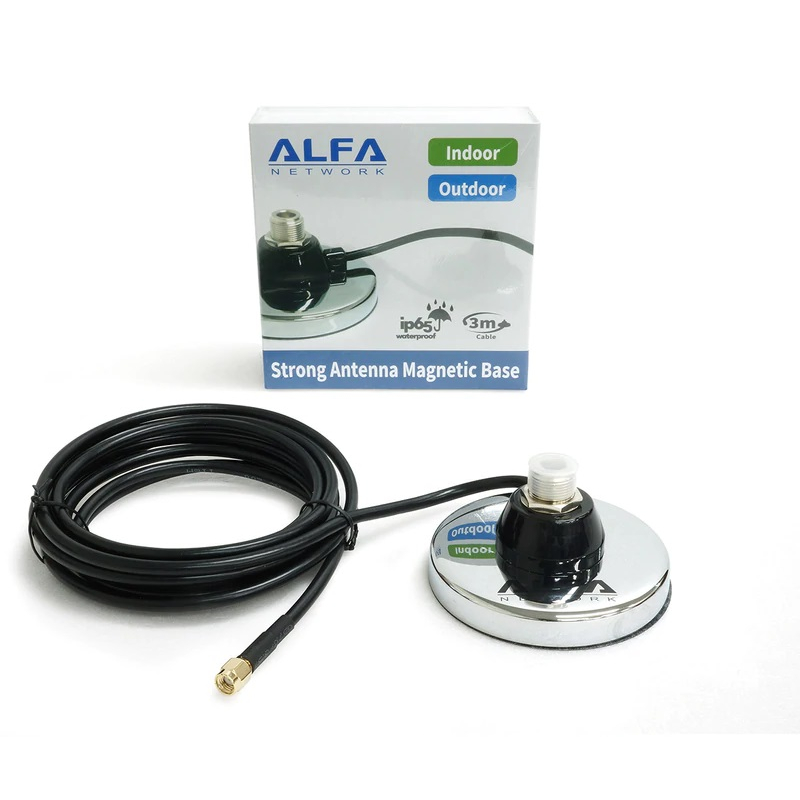

Das Kit enthält:

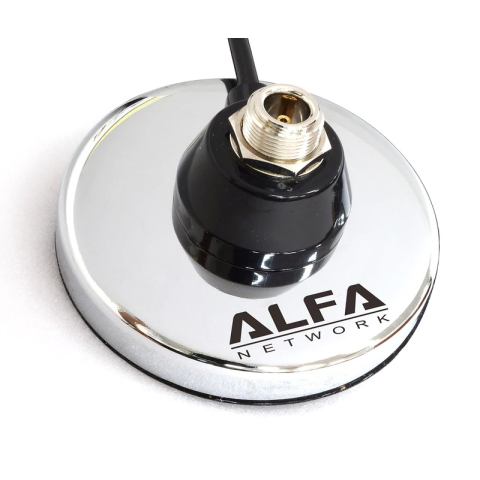

- (1) Sockel mit Schwerlastmagnet (87 mm Durchmesser)
- (2) N-Antennenbuchse

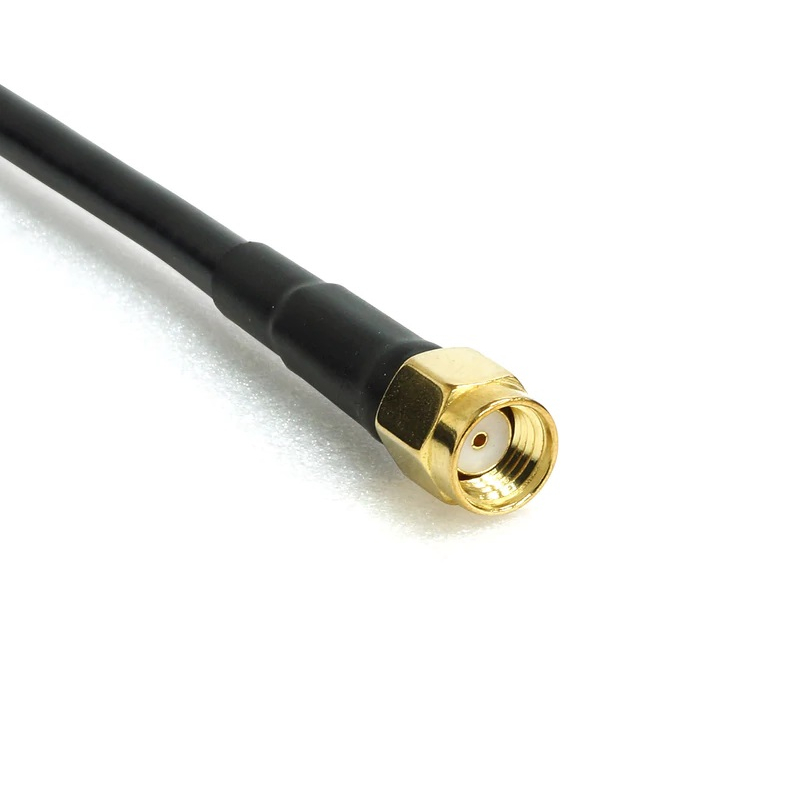

- (3) RP-SMA-Antennenstecker
- (4) Hochwertiges LMR®-200 RF-Kabel (3 m Länge)
Spezifikationen
Antenne
Kabellänge
3 m
Impedanz
50 Ω
Maximale Eingangsleistung
50 W
Anschlüsse
RF Steckverbinder
(1) N Female, (1) RP-SMA Male
Physical Parameters
Maße
∅ 87 mm
Gewicht
0.28 kg
Betriebstemperatur
-40 °C bis 70 °C
Umwelt
Innen, Außen
Montagemethode
Magnetisch
