Marke
Herstellerteilenummer
AOA-2458-59-TSL
Garantie
?
24 Monat
EAN
0708747432800

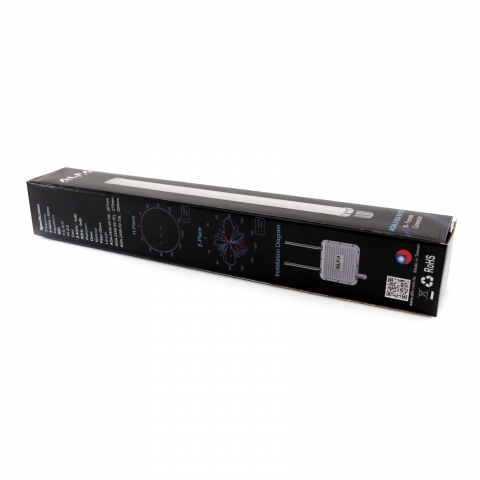

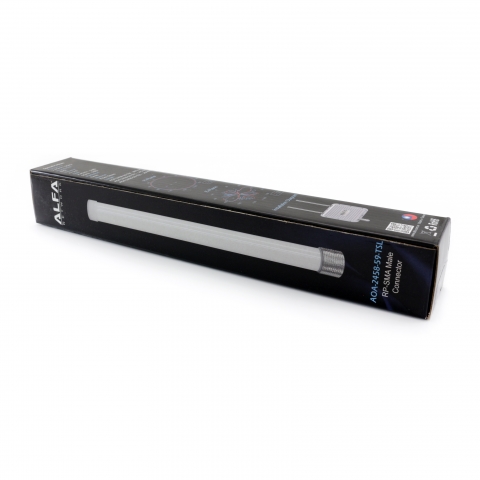

Alfa 2.4/5GHz Omni-Außenantenne 5/9dBi N-Female Buchse
auf Lager
?
18.43 €
18.43 €
Detallierte Beschreibung
Die AOA-2458-59-TSL ist eine Dual-Band-Rundstrahlantenne von ALFA Network für den Außeneinsatz. Es arbeitet im Frequenzband 2400-2483,5 MHz mit 5 dBi Verstärkung und im 5150-5875 MHz Band mit 8,4 dBi Verstärkung und verwendet SISO 1x1-Technologie. Die Antenne ist mit einem wasserdichten RP-SMA-Konnektor ausgestattet.
VSWR
Strahlungsmuster
Spezifikationen
Antenne
Antennen Design
Omni
Wireless Antenna Frequenzbereich und Verstärkung
2.400 - 2.483 (GHz) 5 (dBi), 5.150 - 5.875 (GHz) 8.4 (dBi)
Strahlbreite
360 ° Vertikal
Polarisation
Linear
VSWR
< 2.0
Impedanz
50 Ω
Anschlüsse
RF Steckverbinder

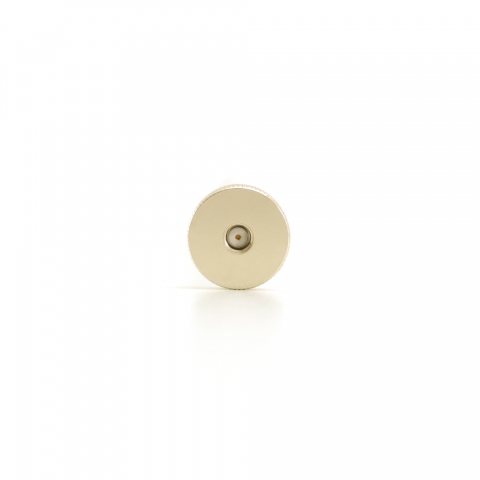

(1) RP-SMA Male
Physical Parameters
Farbe
Weiss
Maße
Ø22 x 260 mm
Gewicht
0.07 kg
Betriebstemperatur
-40 °C bis 85 °C
Umwelt
Außen
