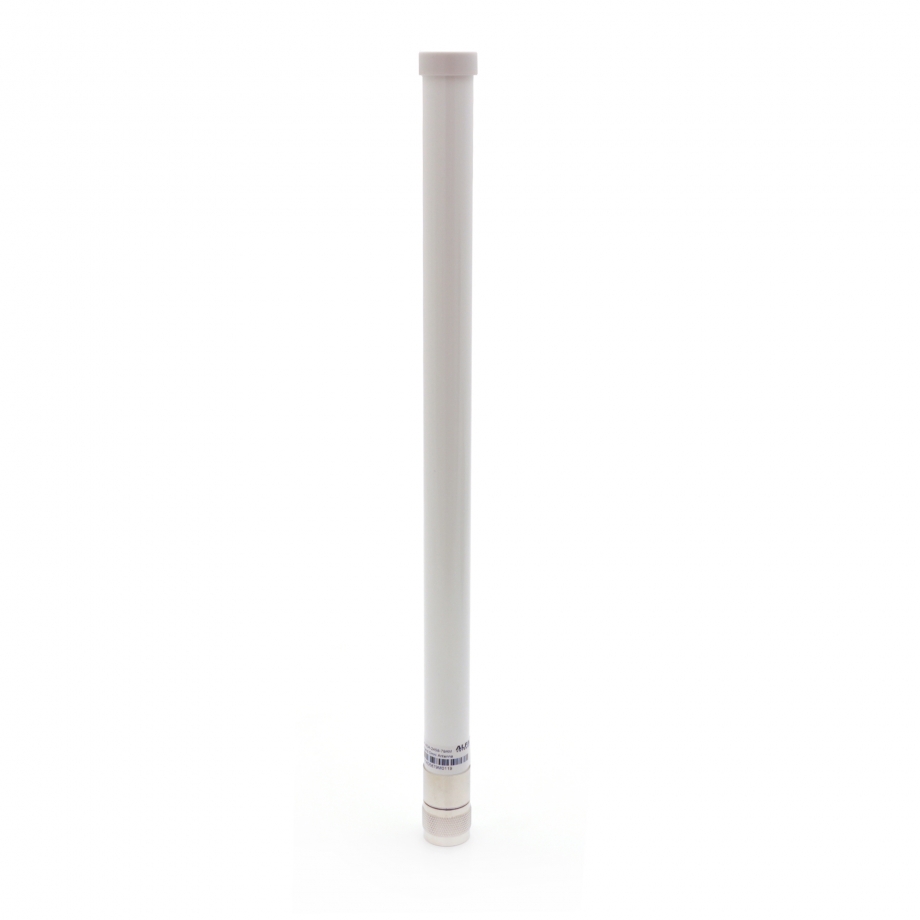

Alfa 2.4/5GHz Omni-Außenantenne 7/9dBi N-Male Stecker
auf Lager
?
16.89 €
16.89 €
Der Bestand ist nicht ausreichend. Bitte registrieren Sie sich, um einen Auftrag zu erteilen.
Detallierte Beschreibung
Die AOA-2458-79AM ist eine omnidirektionale Dualband-Rundstrahlantenne von ALFA Network für den Außeneinsatz. Es arbeitet in den Frequenzbändern 2400-2483,5 MHz mit 7 dBi Verstärkung und im 5150-5875 MHz Band mit 9 dBi Verstärkung und verwendet SISO 1x1-Technologie. Die Antenne ist mit einem wasserdichten N-Stecker ausgestattet. Dies ist eine großartige Antenne für den Einsatz auf Booten oder Wohnmobilen.
VSWR

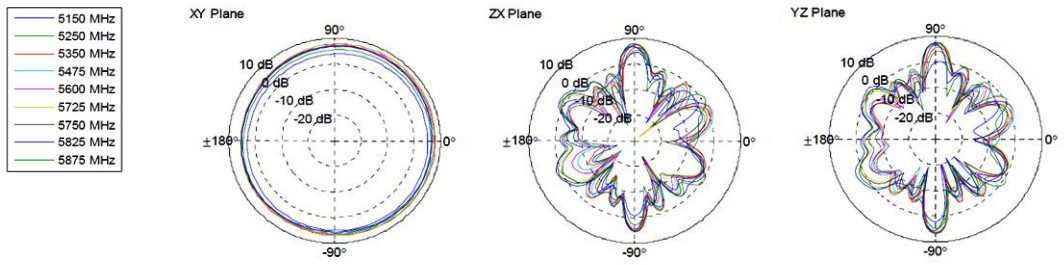

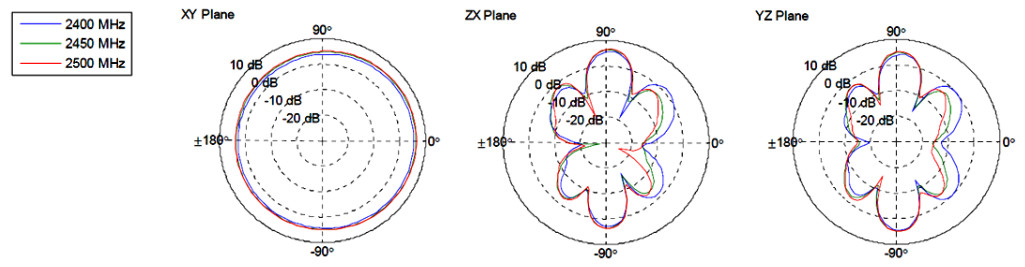

Frequenzdiagramm
Kompatible Produkte
Spezifikationen
Antenne
Antennen Design
Omni
Wireless Antenna Frequenzbereich und Verstärkung
2.4 - 2.5 (GHz) 7 (dBi), 5.15 - 5.875 (GHz) 9 (dBi)
Strahlbreite
360 ° Vertikal
Polarisation
Linear, Vertical
VSWR
< 2.0
Impedanz
50 Ω
Anschlüsse
RF Steckverbinder

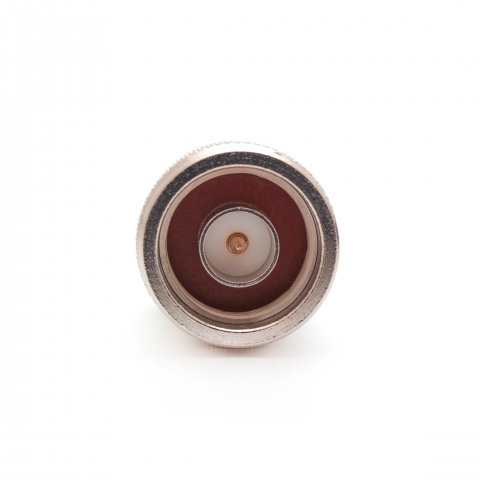

(1) N Male
Physical Parameters
Farbe
Weiss
Material
Glasfaser
Maße
Ø22 x 322 mm
Betriebstemperatur
-40 °C bis 85 °C
Umwelt
Außen
