Marke
Herstellerteilenummer
PR1KCL25
Garantie
?
24 Monat
EAN
0708747439793
Teltonika Combo MIMO Mobildachantenne 3m
Certified Teltonika Engineers
Official Teltonika Distributor
auf Lager
?
16.36 €
16.36 €
Certified Teltonika Engineers
Official Teltonika Distributor
Detallierte Beschreibung

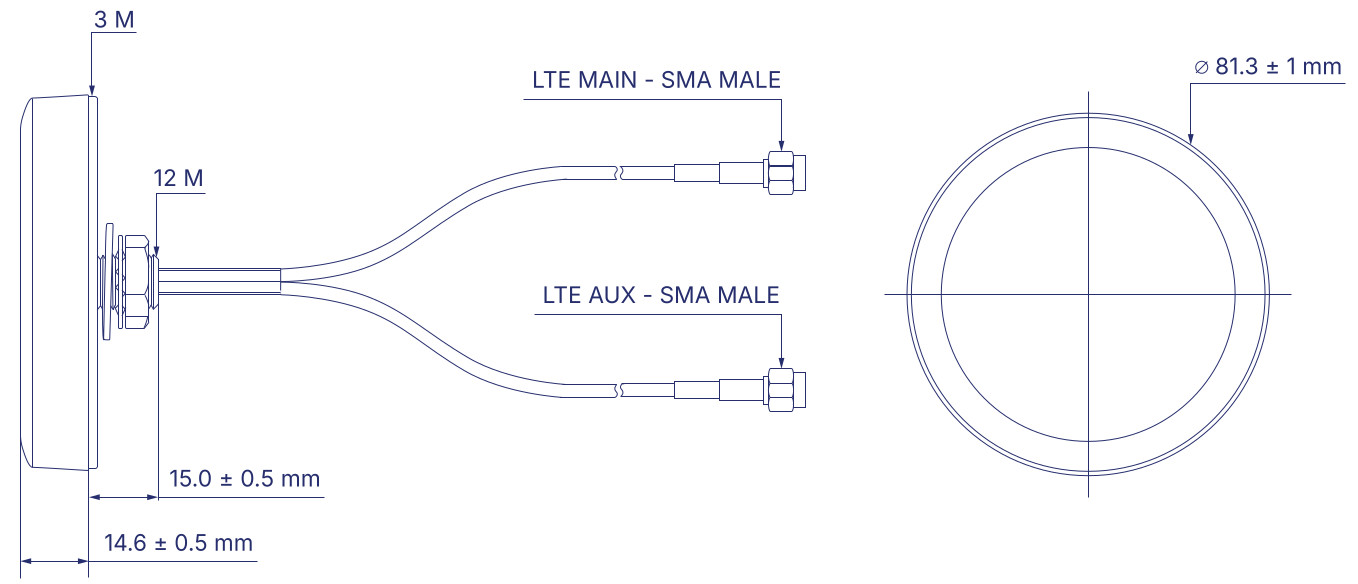

PR1KCL25 ist eine SMA Male Antenne, die in den Frequenzbereichen 698-960 / 1710-2690 MHz mit einem maximalen Gewinn von 2,5 dBi arbeitet. Es handelt sich um eine linear polarisierte Antenne mit einer Impedanz von 50 Ohm. Die Antenne ist staub- und wassergeschützt gemäß der Schutzart IP65. Die PR1KCL25 ist mit zwei koaxialen Hochfrequenzkabeln RG174 ausgestattet. Die Länge jedes Kabels beträgt 3 m. Befestigungsart: Schraube.
Technische Daten
Kompatible Produkte
Spezifikationen
Mobiles Netzwerk
Mobile Network Generation
4G (LTE)
Antenne
Antennen Design
Dach
Mobile Antenna Frequenzbereich und Verstärkung
0.698 - 0.960 (GHz) 2.5 (dBi), 1.710 - 2.690 (GHz) 2.5 (dBi)
Polarisation
Linear
Kabellänge
3 m
VSWR
< 3.0
Impedanz
50 Ω
Anschlüsse
RF Steckverbinder
(1) SMA Male, (1) RP-SMA Male
Physical Parameters
Farbe
Schwarz
Material
ABS Plastik
Ingress Protection Code
IP67
Maße
Ø85 x 15 mm
Gewicht
0.25 kg
Umwelt
Außen
Montagemethode
Schraube
