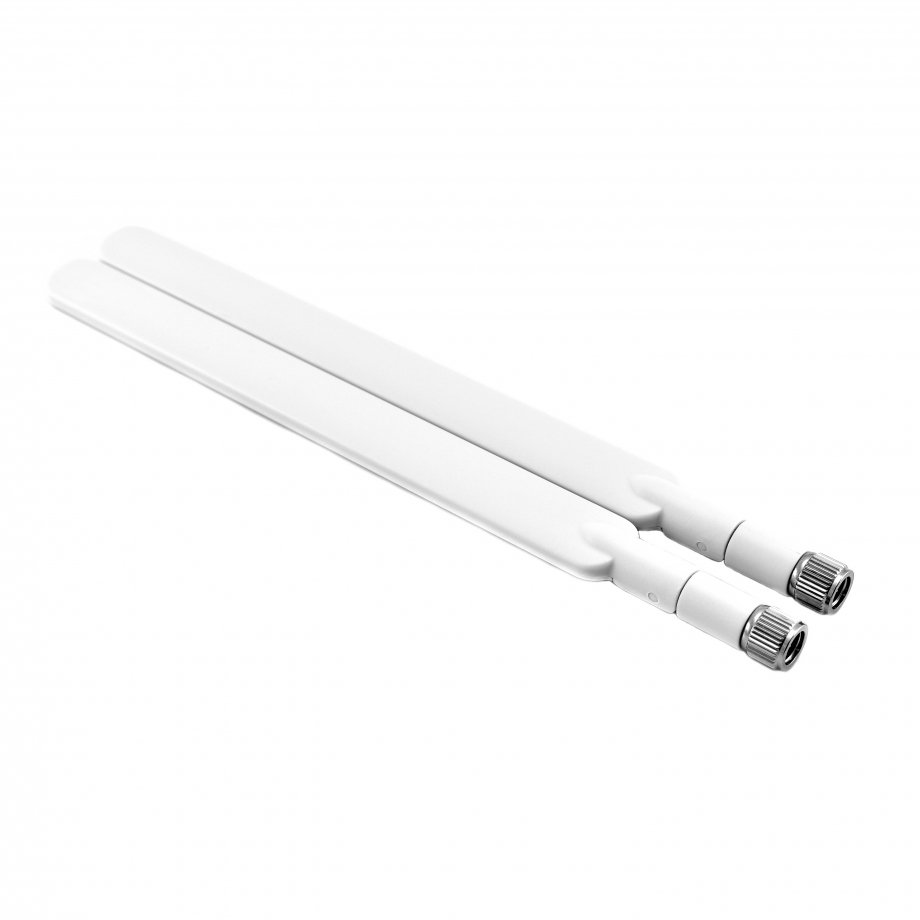

LTE Innenantenne 5dBi weiß (2St.)
Detallierte Beschreibung
Omnidirektionale 4G-LTE-Innenantenne mit SMA-Stecker, die im Frequenzbereich 0,690 - 2,690 GHz arbeitet. Die Antenne hat einen Gewinn von 5dBi. Das Kit besteht aus zwei Antennen.
Technische Daten
Kompatible Produkte
Spezifikationen
Antenne
Antennen Design
Omni
Mobile Antenna Frequenzbereich und Verstärkung
0.690 - 2.690 (GHz) 5 (dBi)
Polarisation
Vertical
VSWR
< 2.5
Impedanz
50 Ω
Maximale Eingangsleistung
50 W
Anschlüsse
RF Steckverbinder

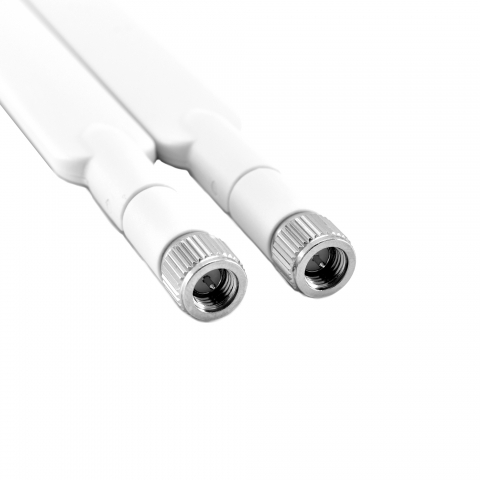

(1) SMA Male
Physical Parameters
Farbe
Weiss
Material
ABS Plastik

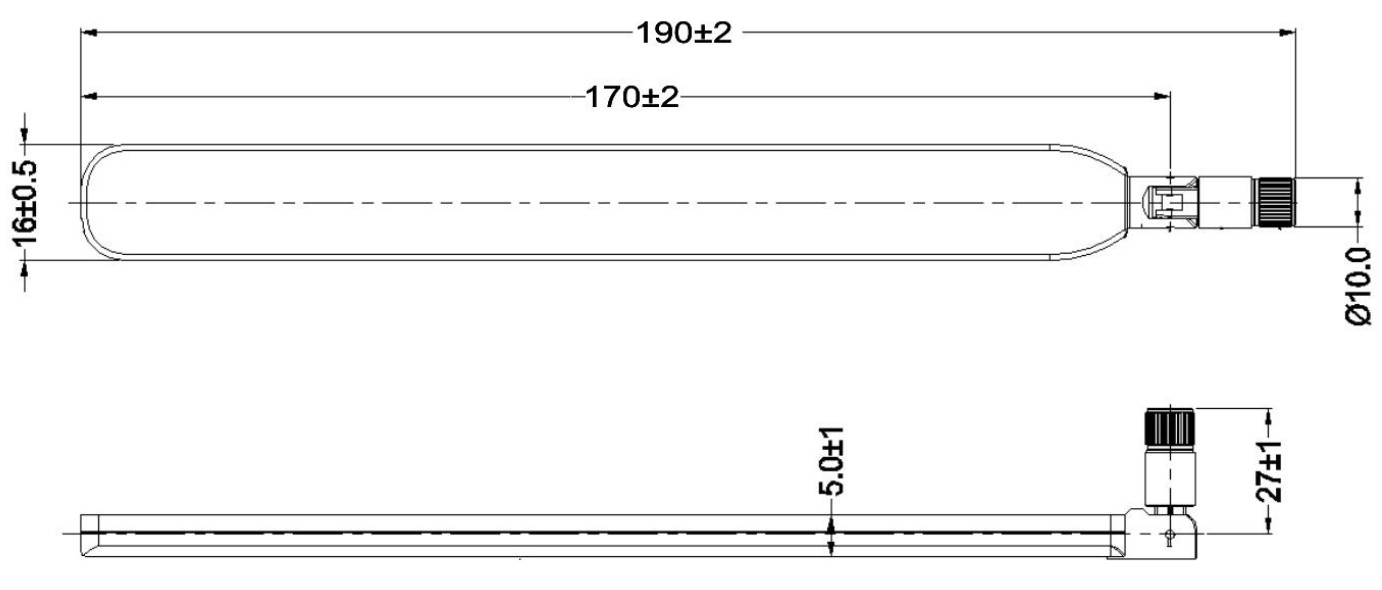

Maße
190 x 17 x 5 mm
Betriebstemperatur
-40 °C bis 80 °C
Umwelt
Innen
Package Contains
Einheiten
2 Stck
