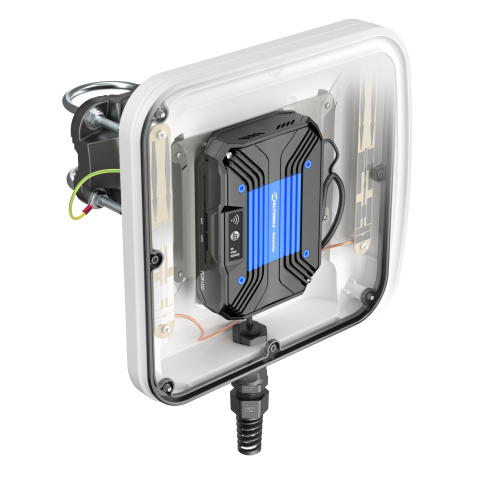

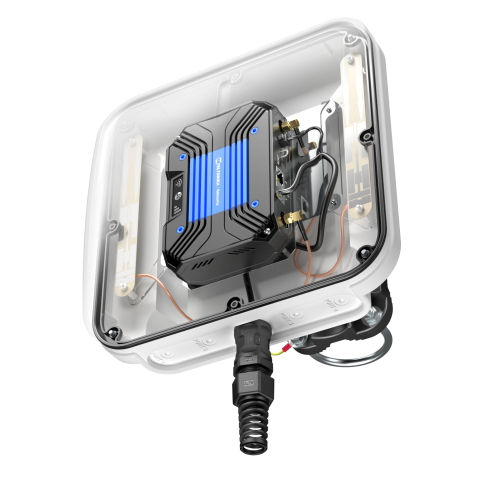

QuMax Omni für TCR100
auf Lager
?
96.56 €
96.56 €
Der Bestand ist nicht ausreichend. Bitte registrieren Sie sich, um einen Auftrag zu erteilen.
Detallierte Beschreibung
Spezifikationen
Mobiles Netzwerk
Mobile Network Generation
Antenne
Antennen Design
Omni
Mobile Antenna Frequenzbereich und Verstärkung
0.694 - 0.96 (GHz) 4 (dBi), 1.7 - 2.2 (GHz) 5 (dBi), 2.5 - 2.7 (GHz) 6 (dBi)
Mobilantenne-Gewinn
4 dBi, 5 dBi, 6 dBi
Strahlbreite
360 °
Polarisation
Vertical
Impedanz
50 Ω
Anschlüsse
Ethernet-Anschluss
RJ45
Physical Parameters
Farbe
Weiss
Material
Aluminum, Glasfaser, Polytetrafluorethylen
Ingress Protection Code
IP67

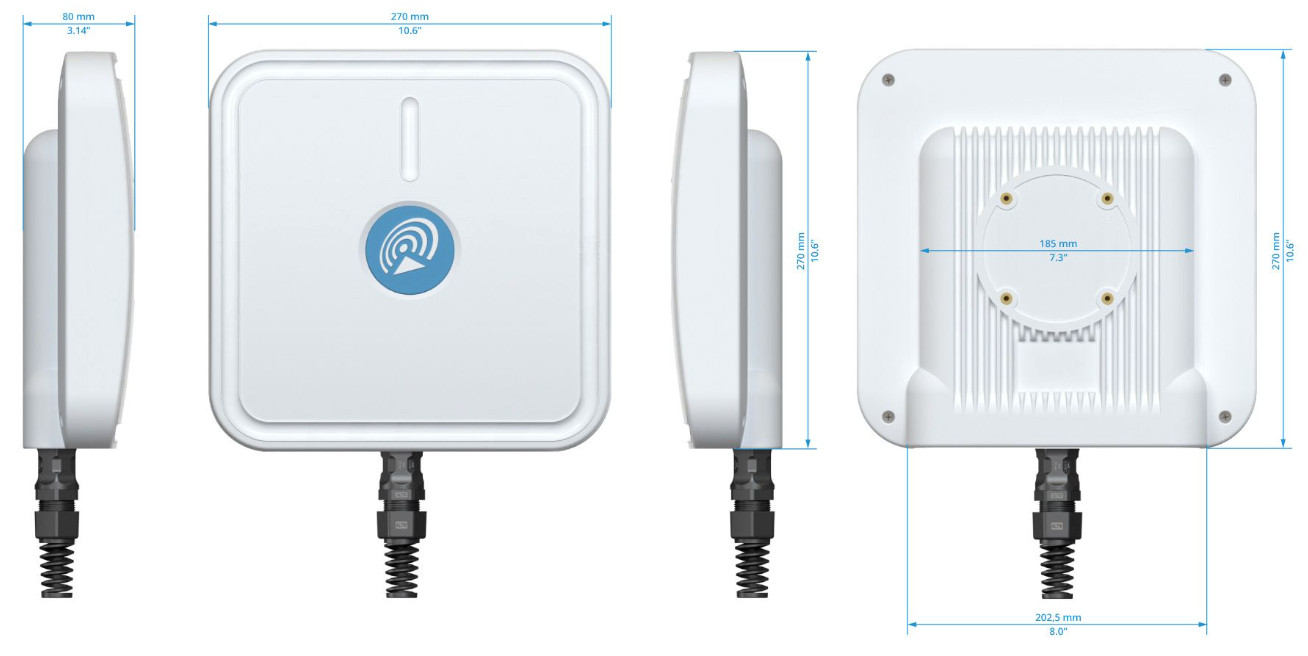

Maße
272 x 276 x 80 mm
Gewicht
1.8 kg
Betriebstemperatur
-40 °C bis 75 °C
Umwelt
Außen

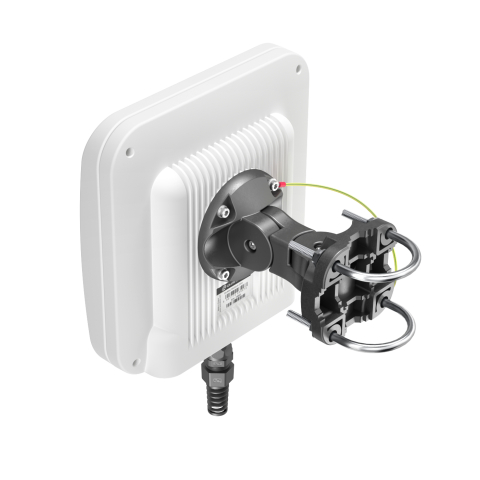

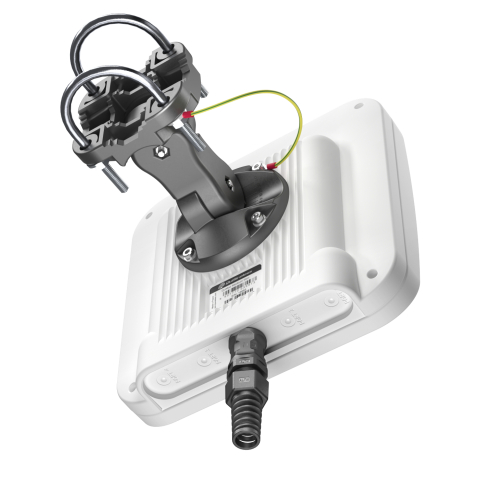

Montagemethode
Wandhalterung, Deckhalterungen, Mastenhalterungen
