Marke
Herstellerteilenummer
PR1KS536
Garantie
?
24 Monat
EAN
4779051840649

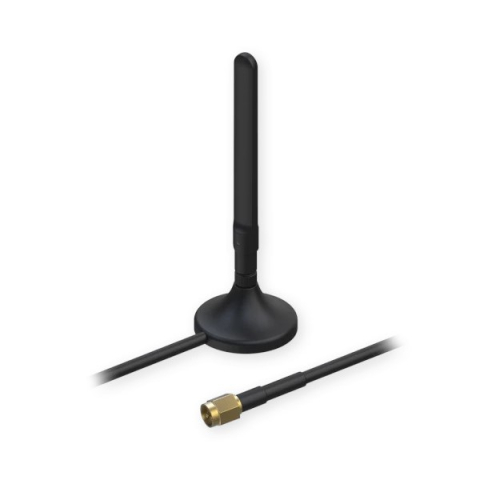

Teltonika 5G Mobile Magnetic SMA Antenna
Certified Teltonika Engineers
Official Teltonika Distributor
auf Lager
?
11.80 €
11.80 €
Der Bestand ist nicht ausreichend. Bitte registrieren Sie sich, um einen Auftrag zu erteilen.
Certified Teltonika Engineers
Official Teltonika Distributor
Detallierte Beschreibung
Technische Daten
Kompatible Produkte
Spezifikationen
Mobiles Netzwerk
Mobile Network Generation
Antenne
Antennen Design
Omni
Mobile Antenna Frequenzbereich und Verstärkung
0.617 - 0.960 (GHz) 3.6 (dBi), 1.40 - 2.69 (GHz) 3.6 (dBi), 3.30 - 5.90 (GHz) 3.6 (dBi)
Mobilantenne-Gewinn
3.6 dBi, 3.6 dBi, 3.6 dBi
Polarisation
Linear
Kabellänge
3 m
VSWR
< 3.5
Impedanz
50 Ω
Anschlüsse
RF Steckverbinder

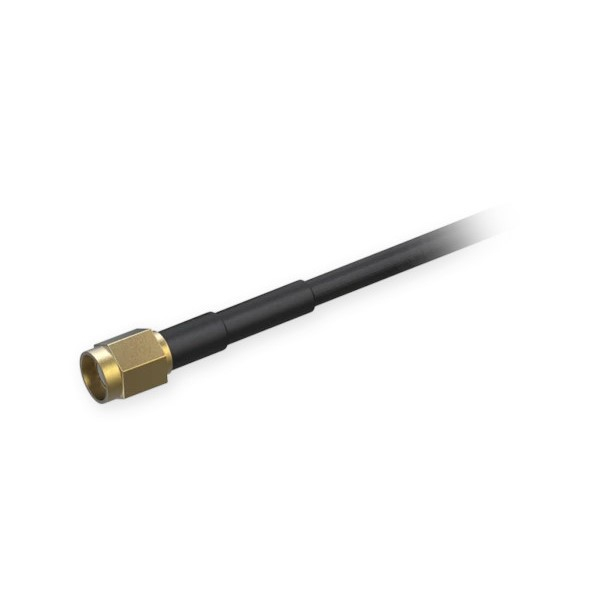

(1) SMA Male
Physical Parameters
Ingress Protection Code
IP33
Gewicht
0.15 kg
Betriebstemperatur
-20 °C bis 65 °C
Umwelt
Innen
Montagemethode
Magnetisch
Package Contains
Einheiten
1 Stck
