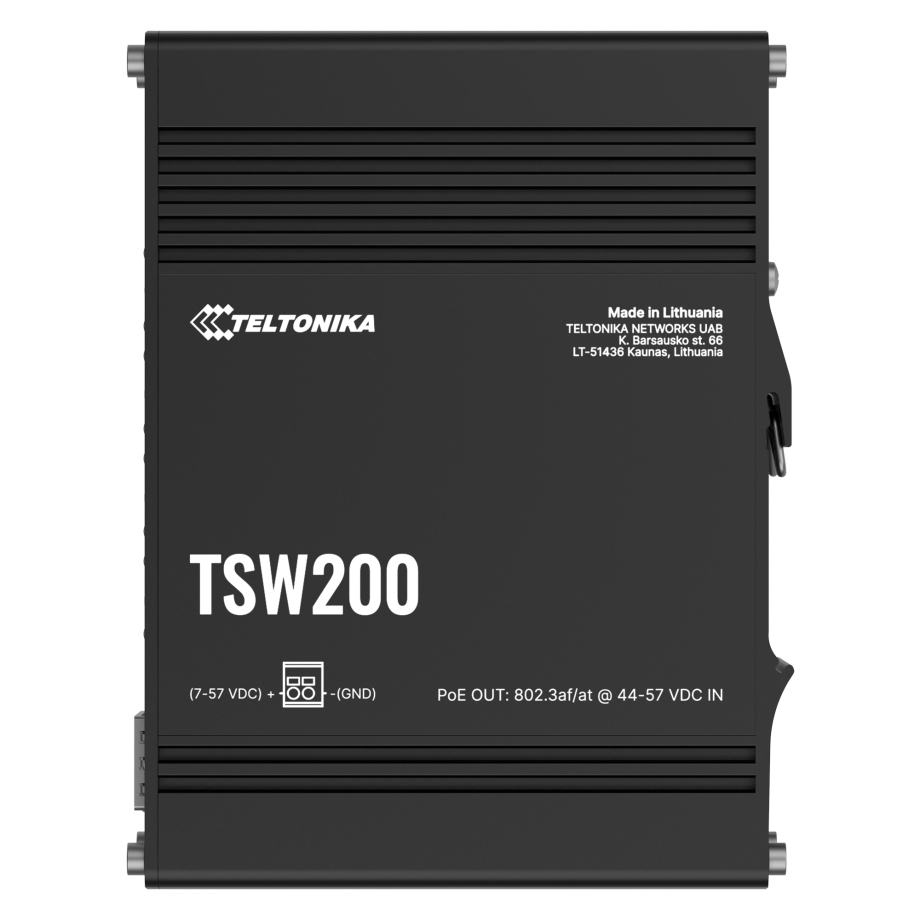

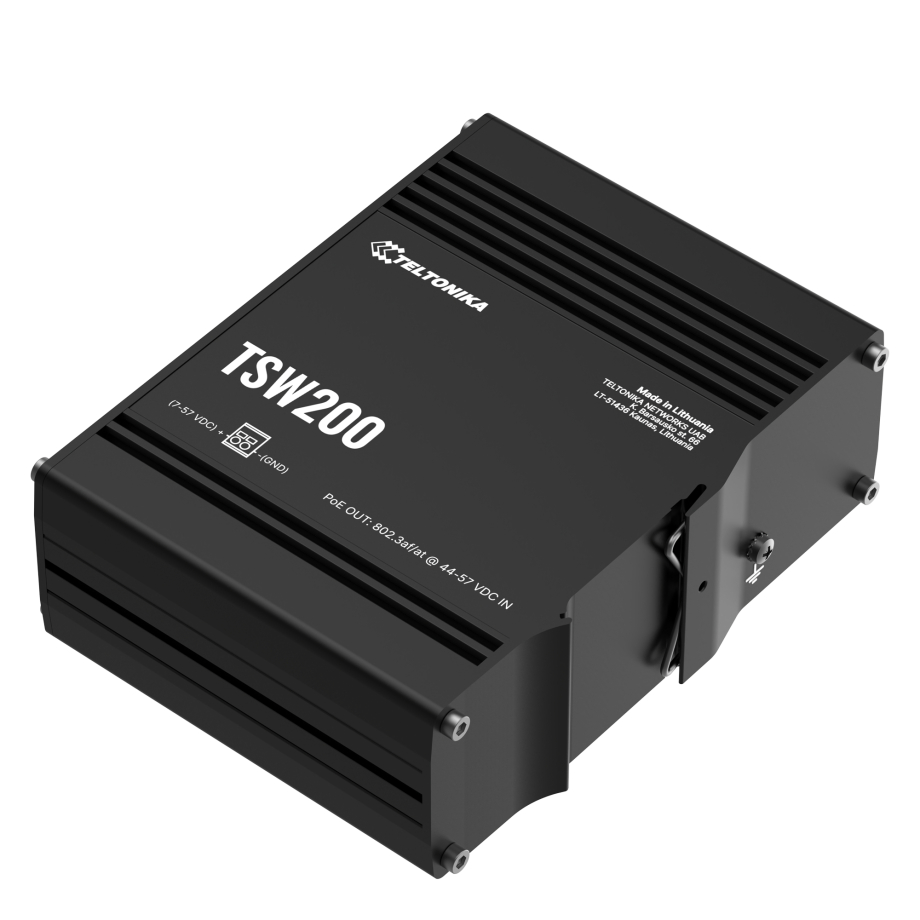

Teltonika TSW200 PoE Switch
Certified Teltonika Engineers
Official Teltonika Distributor
auf Lager
?
84.49 €
84.49 €
%20-%20https://sketch.com%20--%3e%3ctitle%3eprofile_ico%3c/title%3e%3cdesc%3eCreated%20with%20Sketch.%3c/desc%3e%3cg%20id='elements'%20stroke='none'%20stroke-width='1'%20fill='none'%20fill-rule='evenodd'%3e%3cg%20id='svg_elements'%20transform='translate(-449.000000,%20-152.000000)'%20fill='%23131515'%3e%3cpath%20d='M459.293251,164.029275%20C464.901425,164.029275%20469.293251,166.657751%20469.293251,170.012711%20L469.293251,170.012711%20L469.293251,171.011748%20C469.293251,171.556855%20468.849156,172%20468.302879,172%20C467.756603,172%20467.312508,171.556855%20467.312508,171.011748%20L467.312508,171.011748%20L467.312508,170.012711%20C467.312508,167.841105%20463.640863,166.00676%20459.293251,166.00676%20C454.946621,166.00676%20451.273993,167.841105%20451.273993,170.012711%20L451.273993,170.012711%20L451.273993,171.011748%20C451.273993,171.556855%20450.829898,172%20450.283622,172%20C449.738328,172%20449.293251,171.556855%20449.293251,171.011748%20L449.293251,171.011748%20L449.293251,170.012711%20C449.293251,166.657751%20453.686059,164.029275%20459.293251,164.029275%20Z%20M458.603921,152.053677%20C459.091246,151.982108%20459.584467,151.982108%20460.068845,152.053677%20C461.136835,152.211523%20462.104609,152.697806%20462.869002,153.459584%20C463.631431,154.220381%20464.118757,155.187064%20464.276941,156.252769%20C464.680753,158.970463%20462.793349,161.510702%20460.068845,161.91365%20C459.822235,161.949926%20459.572677,161.968553%20459.327049,161.968553%20C458.255129,161.968553%20457.229387,161.629332%20456.360847,160.986184%20C455.28991,160.194013%20454.592327,159.032228%20454.395825,157.714559%20C453.992013,154.995885%20455.879417,152.456625%20458.603921,152.053677%20Z%20M459.336874,153.976259%20C459.189498,153.976259%20459.041138,153.987044%20458.894744,154.008613%20C458.099892,154.126262%20457.397397,154.546857%20456.916949,155.192947%20C456.437483,155.839036%20456.238034,156.631207%20456.355935,157.425338%20C456.473836,158.219469%20456.894351,158.920462%20457.541826,159.398901%20C458.187336,159.877341%20458.978258,160.074403%20459.779004,159.958715%20C461.422746,159.715574%20462.562459,158.183194%20462.317814,156.54297%20C462.122294,155.222359%20461.101465,154.204695%20459.779004,154.008613%20C459.633593,153.987044%20459.484251,153.976259%20459.336874,153.976259%20Z'%20id='profile_ico'%3e%3c/path%3e%3c/g%3e%3c/g%3e%3c/svg%3e){kind=small}
Sonderpreis erhalten
Certified Teltonika Engineers
Official Teltonika Distributor
Detallierte Beschreibung
TSW200 ist ein industrieller Unmanaged Switch von Teltonika Networks. Es ist mit 2 SFP-Ports für die Glasfaserkommunikation über große Entfernungen und 8 Gigabit-Ethernet-Ports ausgestattet, die die Standards IEEE802.3af und IEE802.3at unterstützen.
Als Power Source Equipment (PSE) klassifiziert, ermöglicht TSW200 die Zentralisierung der Stromversorgung, stellt bis zu 30Watt pro Port bereit und reduziert den Aufwand für die Strominstallation. Es verfügt über 10/100/1000-Mbit/s-Ethernet-Ports, um eine wirtschaftliche Lösung mit hoher Bandbreite für Ihr industrielles Ethernet-Netzwerk bereitzustellen.
Dieser robuste, nicht verwaltete Industrie-Switch ist ideal für professionelle Anwendungen mit hoher Bandbreite, bei denen sowohl eine zuverlässige Datenverbindung als auch eine Stromversorgung erforderlich sind. Der TSW200 verfügt über ein robustes Aluminiumgehäuse, unterstützt DIN-Schienen- oder Oberflächenmontageoptionen und bietet ein Gesamtleistungsbudget von bis zu 240 W.
Technische Daten
Kompatible Produkte
Spezifikationen
Interfaces
RJ45 Ports
(8) 1 Gbps
Anzahl von PoE Ports
8 Stck
PoE Standards
802.3af (PoE), 802.3at (PoE+)
SFP Ports
(2) 1G SFP
Power
Leistungsverfahren
AC/DC Adapter
Stromversorgung
Externe AC/DC Netzteile
Unterstützte Eingangsspannung
44 - 57 V DC
Maximale Leistungsaufnahme
240 W
Stromanschlüsse
2-pin, 3 mm
Physical Parameters
Farbe
Silber
Material
Aluminum
Ingress Protection Code
IP30
Maße
132 x 44.2 x 95.1 mm
Gewicht
0.456 kg
Betriebstemperatur
-40 °C bis 75 °C
Umwelt
Innen
Formfaktor
Desktop
Montagemethode
DIN-Schiene, Tisch
Package Contains
Externe Stromversorgung
Nicht enthalten
