Marke
Herstellerteilenummer
PR1KCS28
Garantie
?
24 Monat
EAN
04251876873397
Teltonika LTE/GNSS/Wi-Fi Combo SISO Roof Antenne 3m
Certified Teltonika Engineers
Official Teltonika Distributor
auf Lager
?
-21% 19.25 €
15.18 €
-21% 19.25 €
15.18 €
Certified Teltonika Engineers
Official Teltonika Distributor
Detallierte Beschreibung
PR1KCS28 ist eine kombinierte GNSS + LTE + Wi-Fi SISO Antenne. Der Betriebsfrequenzbereich der GNSS-Antenne ist 698-960 / 1710-2690 MHz. Die LTE-Antenne arbeitet im Frequenzbereich 850 / 900 / 1800 / 1900 / 2170 MHz mit 3,5 dBi Gewinn, während die Wi-Fi-Antenne im Frequenzbereich 2350-2500 MHz mit 2,5 dBi Gewinn arbeitet. Die Antenne ist staub- und wassergeschützt gemäß der Schutzart IP65. PR1KCS28 ist mit drei koaxialen Hochfrequenzkabeln RG174 ausgestattet. Jedes Kabel ist 3 m lang. Montageart: Schraube.
Kompatible Produkte
Spezifikationen
Mobiles Netzwerk
Mobile Network Generation
4G (LTE)
Antenne
Antennen Design
Dach
Wireless Antenna Frequenzbereich und Verstärkung
2.350 - 2.500 (GHz) 2.5 (dBi)
Mobile Antenna Frequenzbereich und Verstärkung
0.850 - 2.170 (GHz) 3.5 (dBi)
Strahlbreite
360 ° Vertikal
GPS Antenne Frequenzbereich und Verstärkung
1575.42 MHz 2 dBic (Zenith)
Kabellänge
3 m
VSWR
< 1.5
Impedanz
50 Ω

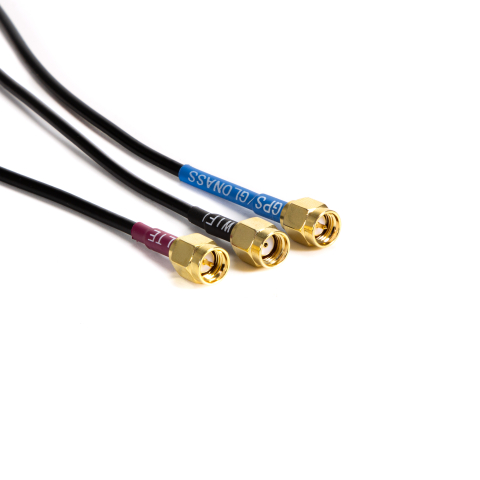

Anschlüsse
RF Steckverbinder
(2) SMA Male, (1) RP-SMA Male
Physical Parameters
Farbe
Schwarz
Material
ABS Plastik
Ingress Protection Code
IP67

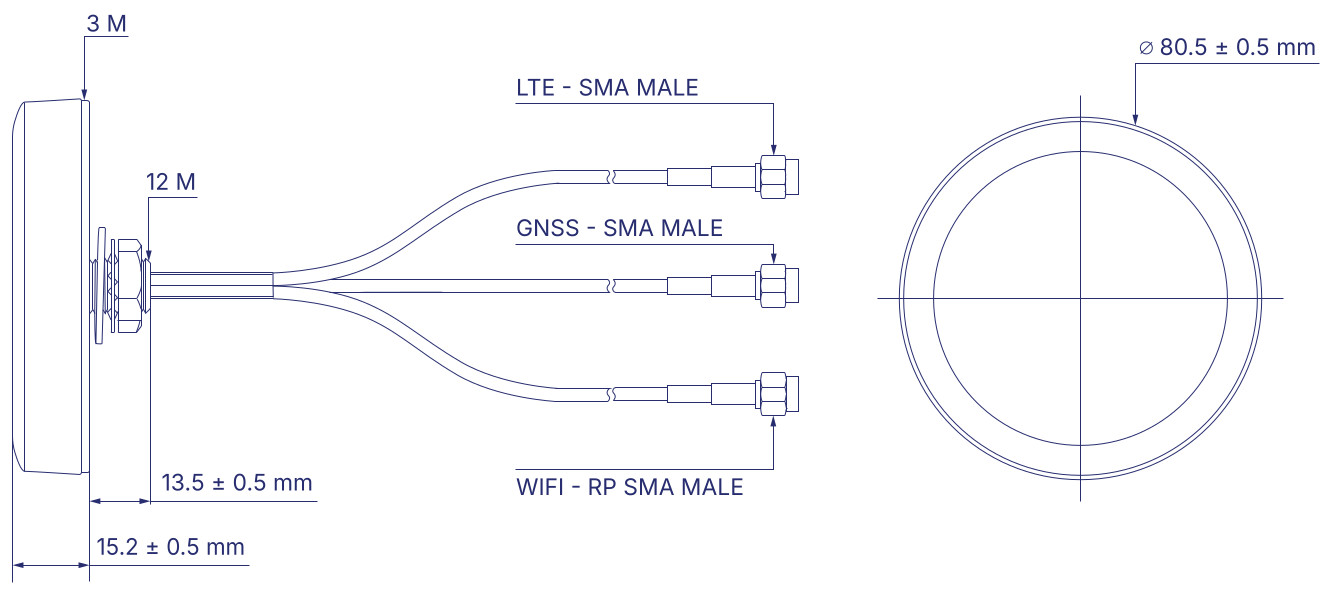

Maße
Ø85 x 15 mm
Gewicht
0.25 kg
Umwelt
Außen
Montagemethode
Schraube
