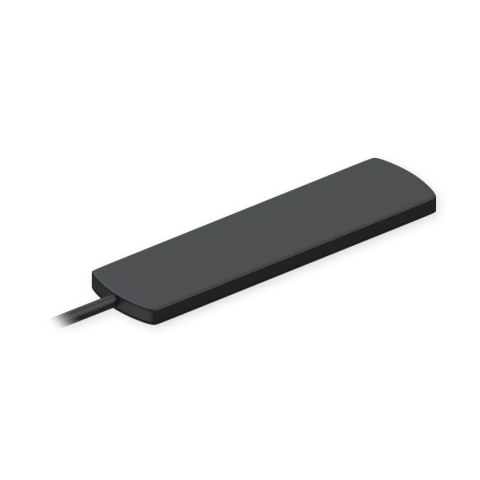

Teltonika Mobilantenne 2dBi, Adhesive, SMA Male Steckverbinder
Certified Teltonika Engineers
Official Teltonika Distributor
auf Lager
?
6.12 €
6.12 €
Der Bestand ist nicht ausreichend. Bitte registrieren Sie sich, um einen Auftrag zu erteilen.
Certified Teltonika Engineers
Official Teltonika Distributor
Detallierte Beschreibung
PR1AS420 ist eine SMA Male Antenne, die in den Frequenzbereichen 824-960 MHz und 1710-2170 MHz mit einem maximalen Gewinn von 2 dBi arbeitet. Es handelt sich um eine linear polarisierte Antenne mit einer Impedanz von 50 Ohm. Die Antenne ist gemäß der Schutzart IP50 vor Staub geschützt. PR1AS420 ist mit einem 3 m langen Hochfrequenz-Koaxialkabel RG174 ausgestattet. Montagemethode: Kleber.
Kompatible Produkte
Spezifikationen
Antenne
Mobile Antenna Frequenzbereich und Verstärkung
0.824 - 0.960 (GHz) 2 (dBi), 1.710 - 2.170 (GHz) 2 (dBi)
Mobilantenne-Gewinn
2 dBi, 2 dBi
Polarisation
Linear
Kabellänge
3 m
VSWR
< 2.0
Impedanz
50 Ω
Anschlüsse
RF Steckverbinder

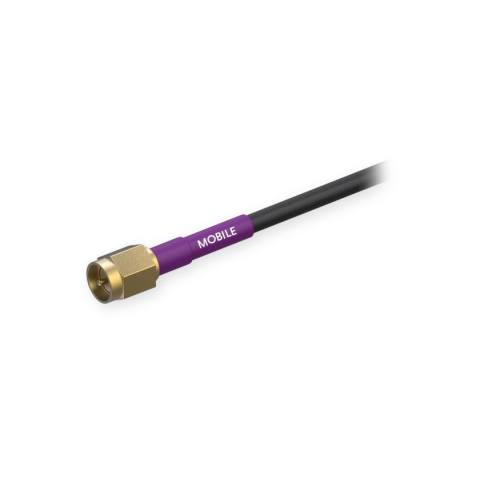

(1) SMA Male
Physical Parameters
Farbe
Schwarz
Betriebstemperatur
-40 °C bis 85 °C
Umwelt
Außen
Montagemethode
Klebstoff
