Marke
Herstellerteilenummer
PR1CS450
Garantie
?
24 Monat
EAN
0708747440782
Teltonika Straight Compact Mobilantenne 5dBi
Certified Teltonika Engineers
Official Teltonika Distributor
auf Lager
?
5.25 €
5.25 €
Certified Teltonika Engineers
Official Teltonika Distributor
Produktvariationen erhältlich
Detallierte Beschreibung

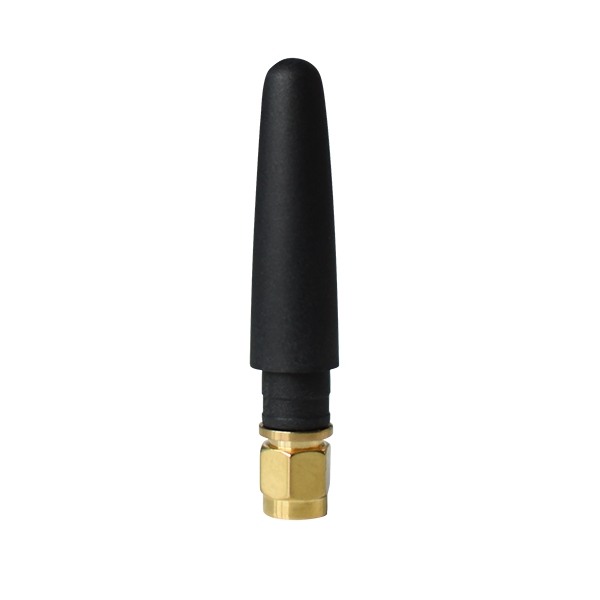

PR1CS450 ist eine SMA Male Antenne, die im Frequenzbereich 700-2700 MHz mit einem maximalen Gewinn von 5 dBi arbeitet. Es handelt sich um eine linear polarisierte Antenne mit einer Impedanz von 50 Ohm. Die Antenne ist 54 mm lang und ist mit einem SMA-Stecker ausgestattet.
Technische Daten
Kompatible Produkte
Spezifikationen
Antenne
Antennen Design
Omni
Mobile Antenna Frequenzbereich und Verstärkung
0.7 - 2.7 (GHz) 5 (dBi)
Polarisation
Linear
VSWR
< 1.8
Impedanz
50 Ω
Anschlüsse
RF Steckverbinder
(1) SMA Male
Physical Parameters
Farbe
Schwarz

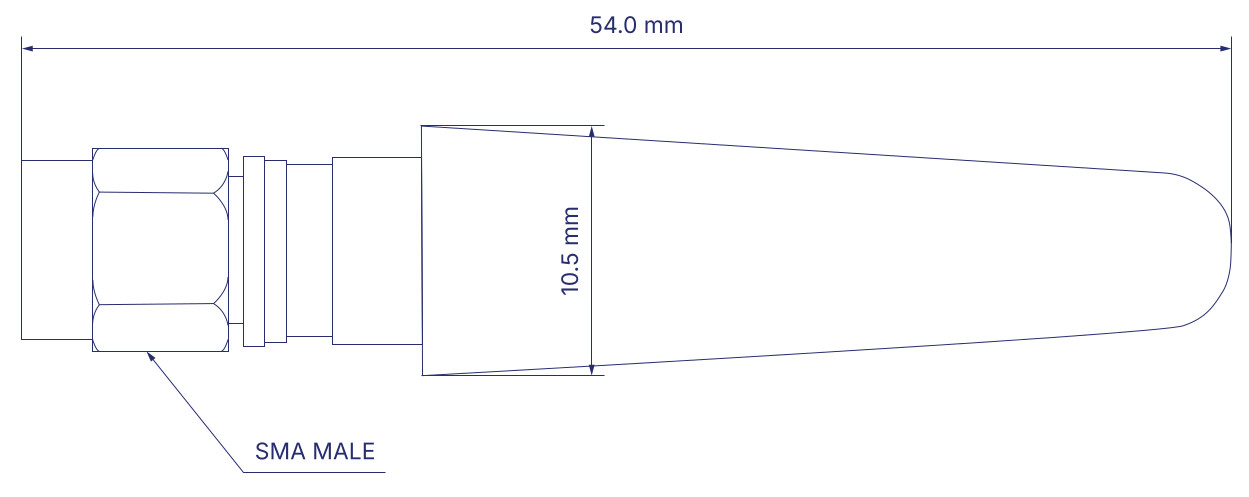

Maße
Ø10.5 x 54 mm
